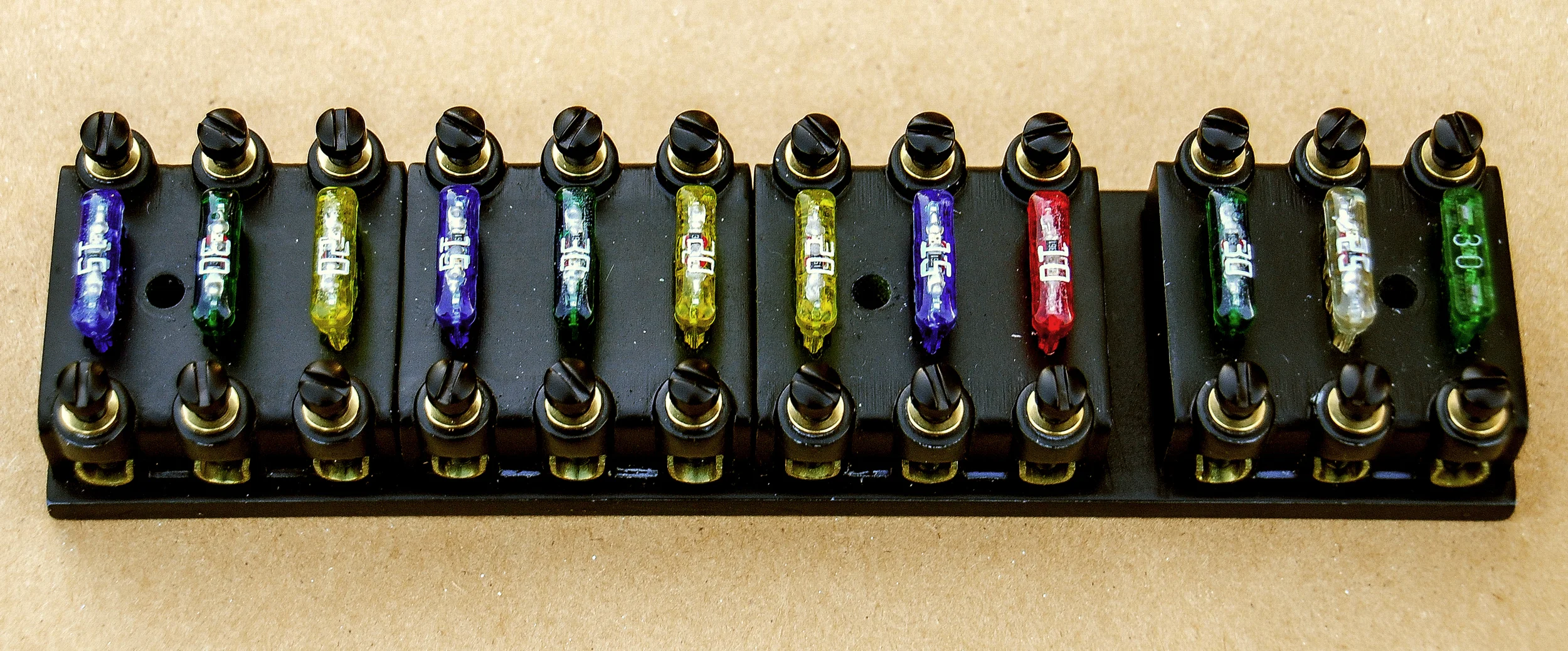

ReFuze Features


  • ReFuze panels are an exact fit. The fuse spacing, mounting holes and overall dimensions are identical to OEM blocks.
  • Our panel sets replace all the OEM blocks including the critical one in the engine compartment if originally fitted..
  • The ReFuze housing is molded of automotive grade resin able to withstand harsh under hood environments.
  • The contacts are formed from 464 Naval brass which has superior corrosion resistance properties.
  • Ganged contacts are one piece incorporating integrated shorting bars identical to OEM configurations.
  • There is only solid brass between the wire and the fuse blade, there are no staked or soldered joints to corrode or loosen.
  • All contacts are pre-treated with a super conductive compound which also inhibits corrosion.
  • Installation requires removing the OEM block and replacing it with a ReFuze panel. All the original wiring aligns correctly.
  • No relocation or modification of the original wiring is required. Stretching original wiring for relocation can cause problems.
  • Crimping or soldering terminals onto original wiring is not required.
  • Nylon self locking screws secure the wire to the contact. No need for thread locker.
  • The nylon screws prevent accidental shorting of adjacent terminals.
  • ReFuze accepts both standard ATO fuses or the latest ATO smart fuses with integrated LED blown fuse indicators.
