CDD Autogear's ReFuze exact fit fuse panels for Porsche cars are in production. There are four ReFuze panel sets that cover retrofitting all 911's from 1965 thru 1989 and 912s from 1965 thru 1969. We have added a ReFuze panel for 356's and a separate three position ReFuze panel for the engine compartment. ReFuze panels are custom configured to match the OEM blocks corresponding to the year and model of your Porsche, therefore when placing an order you will be asked for that information. To place an order for the correct ReFuze panel set to fit your model year use the SELECT button and then the ADD TO CART button and enter the year and model of your car on the next page. Your ReFuze panel set will be configured and shipped within two business days.

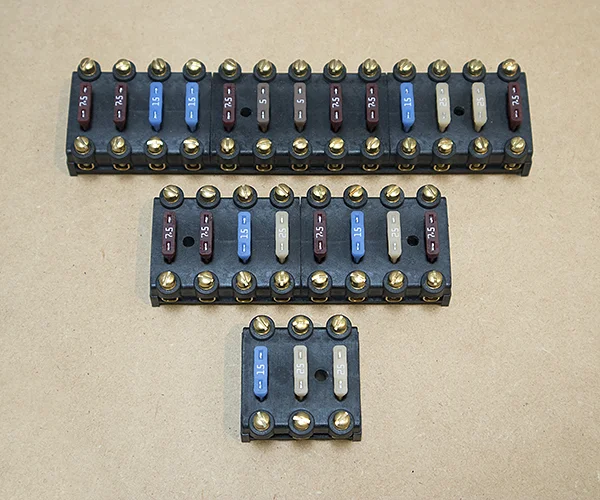

ReFuze 1974 - 1989
$380.00
This ReFuze panel set fits all SC and Carrera models. It consists of one thirteen position panel which combines and replaces the three position block and the ten position block of the front fuse panel, this eliminates the external jumpers between the three and ten block. An eight position panel replaces the original front eight position block. A three position block for the engine compartment completes the panel set. Each panel has internally ganged contacts identical to the OEM configuration.

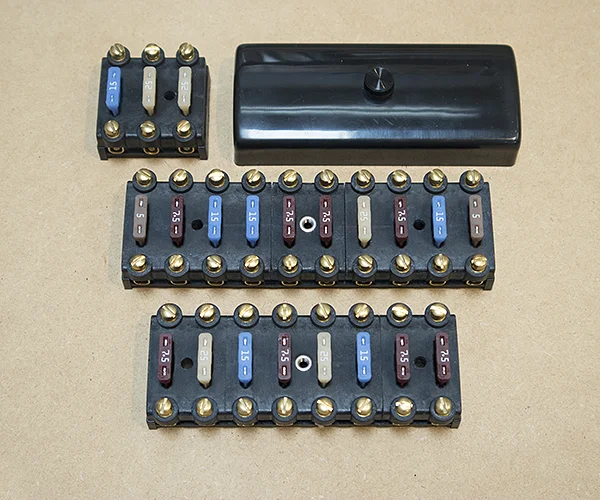

ReFuze 1970 - 1973
$335.00
This ReFuze panel set consists of one ten position panel and one eight position panel as fitted to 1970-1973 911's. A three position block for the engine compartment completes the panel set. Each panel has internally ganged contacts identical to the OEM configuration. The original appearing protective cover for the eight position block is shown but covers for both the eight position and the ten position blocks are supplied with the panel set.
ReFuze 1969 (911 and 912)
$260.00
This ReFuze panel set consists of two eight position panels as fitted to 1969 911's and 912’s. Each panel has internally ganged contacts identical to the OEM configuration. One panel is shown with its original appearing protective cover but covers for both eight position blocks are supplied with the panel set.

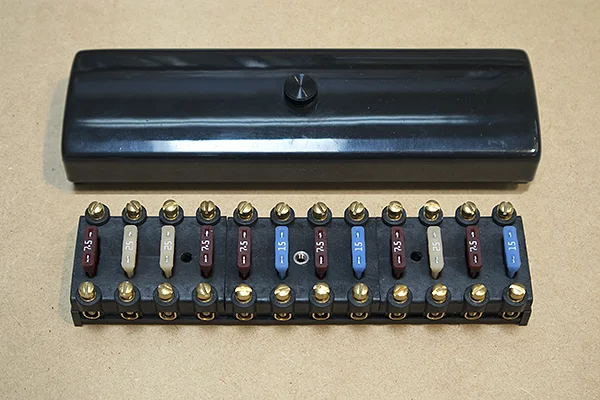

ReFuze 1965 - 1968 (911 and 912)
$200.00
This ReFuze panel set has one twelve position panel as fitted to 1965-1968 911's and 912’s. The panel has internally ganged contacts identical to the OEM configuration. An original appearing protective cover is supplied with the panel
ReFuze 1970-1989 Engine Compartment
$55.00
This three position ReFuze panel comes in three variations. The 1970-1973 panel has two ganged positions (#1 & #2), the 1974-1983 panel has two ganged positions (#2 & #3) and the 1984-1989 panel has three ganged positions (#1 & #2 & #3).
ReFuze 356
$200.00
This ReFuze panel has one twelve position panel as fitted to 356's. The panel has internally ganged contacts identical to the OEM configuration. With its exact fit and no wiring changes required, ReFuze 356 can be easily swapped out for a return to originality. An original appearing protective cover is supplied with the panel.
ReFuze Custom Configuration
Price upon request.
With our modular design ReFuze panels can be configured to any number of positions and any internal ganging that your application may require. Our modular design delivers custom configurations at an affordable price. Covers are available for eight, ten, and twelve position panels.
Pricing and delivery quoted upon request.
